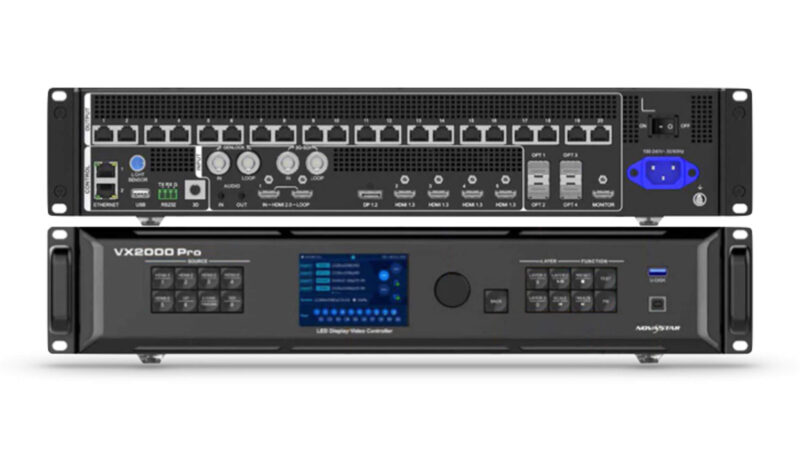

Novastar VX2000 PRO

Descriere

NovaStar VX2000 Pro is a cutting-edge all-in-one controller designed for seamless video processing and control. With its advanced capabilities and user-friendly design, this device is ideal for medium to high-end rental events, stage productions, and fine-pitch LED displays. Its robust construction and versatile features ensure excellent performance even in complex environments.

Key Features
Comprehensive Video Processing

Supports up to 13 million pixels.
Maximum width: 16,384 pixels; height: 8,192 pixels.
4K×2K@60Hz video input for stunning display quality.
Versatile Connectivity

Input ports: 1 DP 1.2, 1 HDMI 2.0, 4 HDMI 1.3, 1 3G-SDI, and 2 optical fiber ports.
Output ports: 20 Gigabit Ethernet ports, 2 additional fiber outputs, and 1 HDMI monitoring port.
Enhanced Display Flexibility

Support for up to 12 layers, adjustable in size, position, and priority.
OSD features: Text, image, weather, clock, and more.
3D functionality for immersive visual effects (requires compatible 3D glasses).
Customizable and Efficient Operations

Save and load up to 256 user-defined presets with one-click accessibility.
Pixel-level brightness and chroma calibration for color consistency.
Multiple image scaling modes: Full screen, pixel-to-pixel, and custom.
Low Latency and Synchronization

Delay as low as <1ms with low latency mode.
External or internal Genlock ensures synchronized outputs for all connected units.
Multiple Operating Modes

Operates as a video controller, fiber converter, or in Bypass mode.
User-Friendly Control Options

Manage via front panel, NovaLCT, Unico, VICP app, or remote control.
Durable and Portable Design

Industrial-grade casing and compact dimensions (482.6mm × 409.0mm × 94.6mm) with a net weight of 7 kg.
Backup and Recovery

End-to-end redundancy between devices, input sources, and Ethernet ports.
Data auto-restoration after power loss.

Maximum Pixel Capacity: 13 million
Maximum Input Resolution: 4096×2160@60Hz (DP 1.2, HDMI 2.0)
Ethernet Ports: 20
Fiber Outputs: 4
Number of Layers: 12
USB Playback: Supported (USB 3.0)
Low Latency: 0-frame (ByPass mode)
3D Support: Third-party 3D emitter
Control Options: Front panel, NovaLCT, Unico, VICP
OPT Fiber Ports (Self-Adaptive): 2 (Input or Output)
HDMI Input: 2x HDMI 2.0 & 4x HDMI 1.3
DisplayPort Input: DP 1.2
Maximum Width/Height: 16,384 × 8,192 pixels
Preset Storage: 256 presets
Power Consumption: 80W
