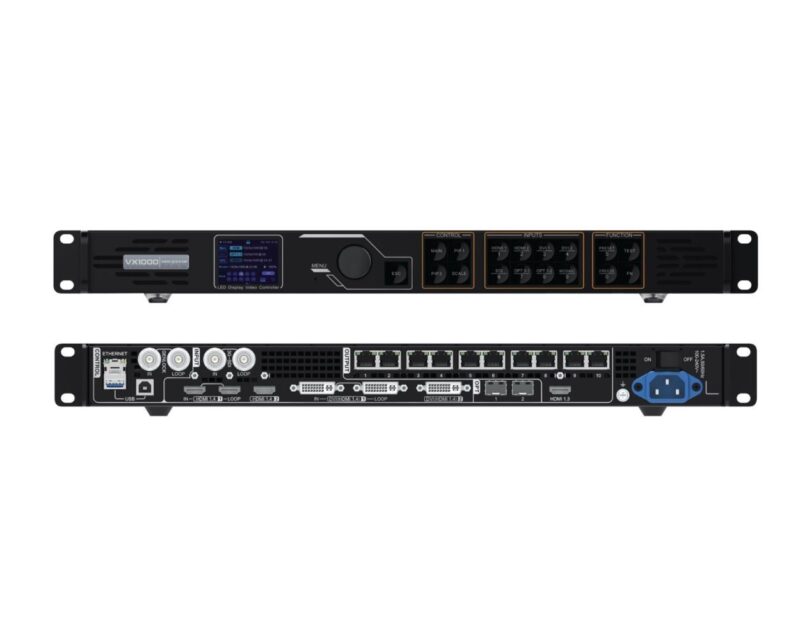

Novastar VX1000

Descriere

The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box.
VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.

4K x 1K@60Hz high resolution input, 4K x 1K point to point display
3 x 4K layers, free scaling for each layer
Video Controller, ByPass, Fiber Converter, free switching between three modes

Device Model VX1000
Loading Capacity 6.5 million pixels
Max Width & Height Max width: 10240 pixels
Layers 3x 4K×1K
Input Connectors 1x 3G-SDI
2x HDMI 1.4
2x DVI（HDMI 1.4）
1x OPT1 1x 3G-SDI

Output Connectors
10x Ethernet Ports
1x HDMI1.3
1x HDMI1.4 LOOP
1x DVI LOOP
1x 3G-SDI LOOP

Presets 10

Control Connectors
1x Ethernet Port
2x USB (input & output)
1x GENLOCK (IN & LOOP)
2x USB (input & output)
1x Light Sensor
