NEC MultiSync X463UN LCD Display 46″ – seamless

Descriere

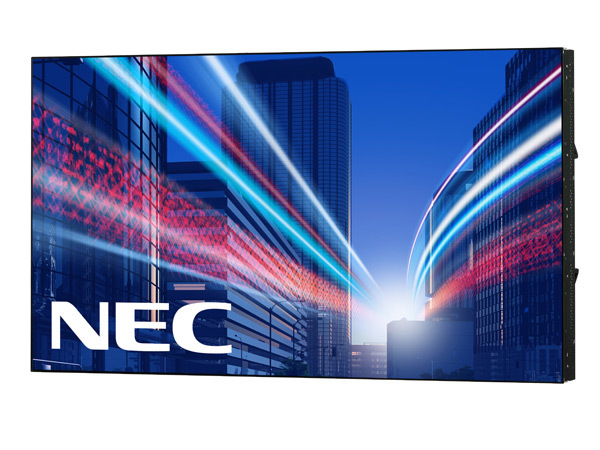

The seamless 46“ NEC MultiSync X463UN LCD display was designed for building large video walls. It supports a maximum resolution of 1920×1080, a maximum brightness of 500 cd/m² and a contrast of 3500:1. The video wall can reach dimensions of 10×10 units. The bezel size is 5.9mm.
General specifications
Display technology LCD
LCD panel technology S-PVA
LCD backlight technology Direct LED
Screen size 46 ”
Aspect ratio 16:9
Horizontal resolution 1920 Pixel
Vertical resolution 1080 Pixel
Horizontal pixel pitch 0,53 mm
Vertical pixel pitch 0,53 mm
Active screen width 1.018,40 mm
Active screen height 572,50 mm
Brightness 700 cd/m²
Contrast 3500 : 1
Viewing angle +-value; horizontal 89 °
Viewing angle –value; horizontal 89 °
Viewing angle +-value; vertical 89 °
Viewing angle –value; vertical 89 °
VESA standard 300 x 300 mm
24/7 operation possible yes
Bezel width 5,90 mm
3D-ability no
PIP (picture in picture) support yes
Portrait mode yes
Face up installation yes
Face down installation no
Split screen 10 x 10
Local dimming no
Inputs and Outputs
Number of DisplayPort inputs 1
Number of HDMI inputs 1
Number of DVI inputs 1
Analog connector type S-Video
BNC – RGBHV
HD15 – VGA
BNC – FBAS (Composite Video)
Number of DisplayPort loop 1
Number of DVI loop 1
max. DaisyChaining DisplayPort 30
max. DaisyChaining DVI 9
HDCP support yes
Audio input RCA / Cinch Stereo-Set (L/R)
2x 3,5 mm audio jack
HDMI embedded
Audio output Speaker output
3,5 mm audio jack
Connection for external loud speaker yes
Control
Remote interface RJ45 / LAN
remote control
Operating interface web GUI
seperate software
Power consumption 260,00 W
