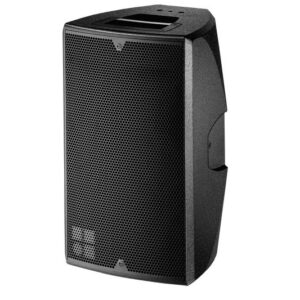

D&B audiotechnik E12-D

Descriere

D&B audiotechnik E12-D Point sources
High performance 2-way coaxial loudspeaker with wide dispersion
Components 12″/1.3″
Dispersion 110° x 50° rotatable
SPLmax 133 dB
Weight 16 kg / 35 lb
Article number Z0602

System data
Frequency response (-5 dB standard)50 Hz – 18 kHz
Frequency response (-5 dB CUT mode)100 Hz – 18 kHz
Max. sound pressure1
with 10D
with D20/30D
with D40/D80/40D
130 dB
133 dB
133 dB
Cabinets per amplifier channel2
Loudspeaker data
ConfigurationHigh performance 2-way coaxial loudspeaker with wide dispersion
Nominal impedance8 Ω
Power handling capacity (RMS/peak 10 ms)300/1600 W
Nominal dispersion angle (h x v)110° x 50° rotatable through 50° x 110°
Components12″ driver with neodymium magnet
1.3″ exit compression driver with 3” coil and rotatable CD horn
passive crossover network
Connections2 x NLT4 F/M
optional 2 x NL4
Dimensions / weight
Dimensions (H x W x D)580 x 350 x 334 mm
22.8 x 13.8 x 13.2″
