D&B-audiotechnik-M4

D&B audiotechnik M4

Stage Monitor

Frequency response (–5 dB standard):
55 Hz - 17 kHz
Max. sound pressure (1m, free field):
138 dB / 140 dB
2-way stage monitor
400/1600 W
50° x 70° rotatable
15" driver with neodymium magnet

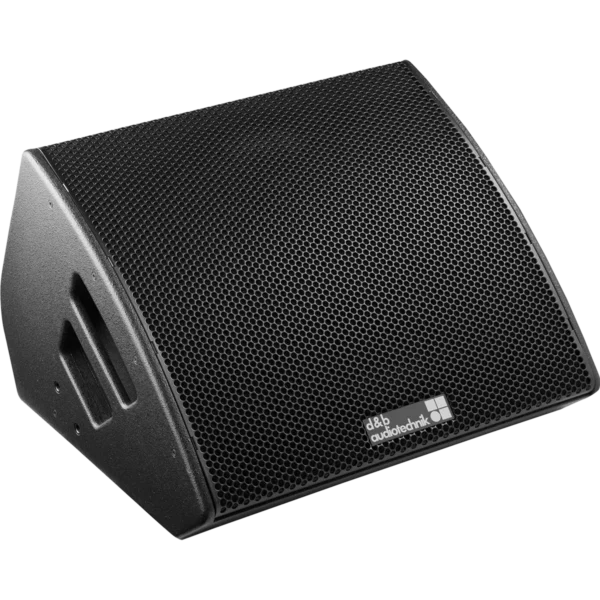

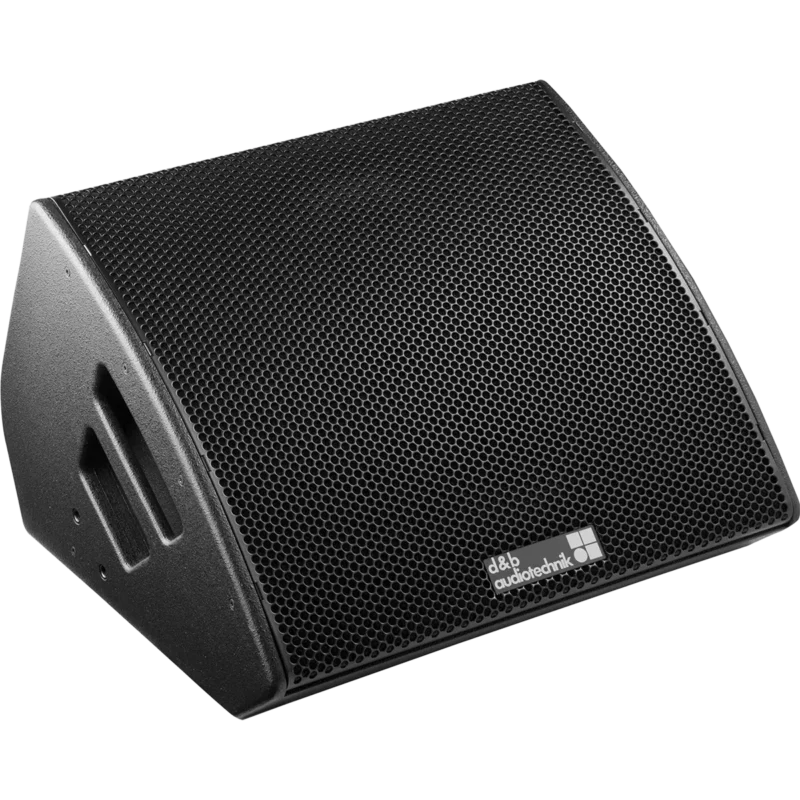

The M4 is a 2-way high performance stage monitor employing an integrated 15” LF and 1.3” exit horn loaded HF coaxial driver design that utilizes neodymium magnets. The constant directivity dispersion of 50° x 70° (h x v), which this unique horn provides, delivers an accurately defined coverage area on stage. The M4 can also be operated in 2-Way Active mode.

When the cabinet is used in an upright position the M4 serves as a powerful PA loudspeaker with a 70° x 50° dispersion suitable for a variety of applications. For dedicated installation applications the dispersion characteristics of the M4 driver assembly can be rotated in 45° increments.
